From: andrew cooke <andrew@...>

Date: Sun, 20 Jul 2025 18:09:37 -0400

I previously discussed corrections to improve the ADC of the Raspberry
Pico at https://acooke.org/cute/DNLINLandR0.html

The last few days I've been working on comparing the two corrections
directly, using the Modular System hardware.

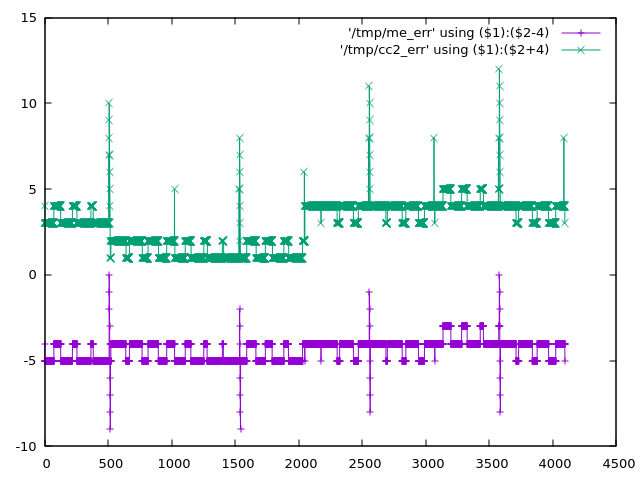

More exactly, I am comparing the two corrections with linear trends
removed.  I didn't show these together in the previous post, so look
here to see the expected errors (given my interpretation of the
published DNL) - https://acooke.org/img/pico-comp.png (the y values
are offset to avoid overwriting).  The errors for the existing
correction, with linear trend removed, are green.  My take is purple.

To do this comparison I wrote some software (currently in a private
repo, but I have included the main routines below) that generates a
triangular pattern on an output, expecting the user to add a cable so
that the written value is read on an input.  I then subtract from the
measured input the known, correct value (the previous value written to
the output).

To compare the two corrections I sum, sample after sample, the
difference between the absolute error between known and corrected value
for the two corrections.

That's kinda complex to get your head round.  In pseudo code:

    cumulative_diff = 0
    for each sample:
      out = triangular_wave()
      write_audio_output(out)
      in = read_audio_input()
      err1 = abs(out - correction_1(in))
      err2 = abs(out - correction_2(in))
      cumulative_diff += err1 - err2

where I've ignored the slight error with the input being the previous
sample (in practice I correct for this).

To check for systematic errors (bugs) in the code, I also:

  * switch channels (0 or 1) depending on the Y knob
  * switch the corrections depending on the switch (up/mid)
  * sum the errors (so err1 + err2) if the switch is down

I also have a debug mode that sends raw and "corrected" saw tooths to
the two audio outputs, so I can check the signals on my oscilloscope.

Finally, I display bits 13 to 18 of cumulative_diff on the LEDs
(discarding 12 bits makes the data vary more slowly which is important
when I only have 6 bits available).

The results consistently show that "my" correction gives smaller
errors than the (linearly corrected) existing correction.  Working
back from the sample rate and values displayed, the improvement is
around 1 count per sample (which seems a bit high, but is at least in
the correct ballpark).  Note that this is not an improvement in
dynamic range of a bit (nothing like) - it is better to think of it
as a small reduction in noise.

The results are independent of which channel is used for reading and
writing (the Y knob).  Also, adding the errors rather than subtracting
them gives a significantly faster rise in cumulative error (as
expected).

For the record, the C++ code for the two corrections I am using is:

  inline uint16_t scale_adc(uint16_t adc) {
    return static_cast<uint16_t>((520222 * static_cast<uint32_t>(adc)) >> 19);
  }

  // my correction
  uint16_t fix_dnl_ac(const uint16_t adc) {
    uint16_t bdc = adc + (((adc + 0x200) >> 10) << 3);
    if ((adc & 0x600) && !(adc & 0x800)) bdc += 2;
    if ((adc + 0x200) % 0x400 == 0) bdc -= 4;
    return scale_adc(bdc);
  }

  // the existing correction
  uint16_t fix_dnl_cj(uint16_t adc) {
    uint16_t adc512 = adc + 512;
    if (!(adc512 % 0x01ff)) adc += 4;
    return scale_adc(adc + ((adc512>>10) << 3));
  }

Finally, given all the above, I'd suggest changing the correction in
the code to:

  * remove the linear bias (the scale_adc function above)
  * use "my" detailed corrections

I'd also suggest applying it to the audio as well as the CV channels
(or at least making this optional).

Cheers,
Andrew


Here are the main routines (weas/cc is my modified ComputerCard
library; weas/leds is the interface to the LEDs which is now separate
from cc):

  #include <algorithm>
  #include <cmath>
  #include <numbers>

  #include "cosas/maths.h"
  #include "weas/cc.h"
  #include "weas/leds.h"


  class DNL final : public CC {

  private:

    static constexpr bool DEBUG = false;
    static constexpr uint NOISE = 12;  // bits of score to discard
    LEDs& leds = LEDs::get();
    Switch sw = Down;
    uint32_t count = 0;
    int32_t score = 0;
    int prev_out = 0;
    uint wtable_idx = 0;
    constexpr static uint wtable_bits = 12;
    constexpr static uint wtable_size = 1 << wtable_bits;
    int16_t wtable[wtable_size] = {};

    void update_switch() {
      Switch sw2 = SwitchVal();
      if (sw2 != sw) {
	score = 0;
	sw = sw2;
      }
    }

    int16_t correct(bool ac, int16_t in) {
      uint16_t in_abs = (in + 0x800) & 0x1fff;
      if (ac) {
	in = static_cast<int16_t>(fix_dnl_ac(in_abs)) - 0x800;
      } else {
	in = static_cast<int16_t>(fix_dnl_cj(in_abs)) - 0x800;
      }
      return in;
    }

    void compare_and_score(int16_t next_out) {

      // signal sent to 0 and 1
      // should be wired to inputs on 0 and 1 (order not important)

      for (uint lr = 0; lr < 2; lr++) AudioOut(lr, next_out);
      uint chan = KnobVal(Y) < 2048 ? 0 : 1;

      switch (sw) {
      case Down:
	// flash chan
	leds.set(2 + chan, true);
	// this one is all errors, so should grow faster
	score += abs(correct(true, AudioIn(chan)) - prev_out) + abs(correct(false, AudioIn(chan)) - prev_out);
	break;
      case Middle:
	score += abs(correct(true, AudioIn(chan)) - prev_out) - abs(correct(false, AudioIn(chan)) - prev_out);
	break;
      case Up:
	score += abs(correct(false, AudioIn(chan)) - prev_out) - abs(correct(true, AudioIn(chan)) - prev_out);
	break;
      }

      // this displays +ve numbers are bright, -ve as dim
      // middle switch, +ve (bright) means more errors from ac
      // upper switch, +ve (bright) means more errors from cj
      leds.display7bits(
	static_cast<int16_t>(std::max(-0x7fff,
	static_cast<int>(std::min(
	  static_cast<int32_t>(0x7fff), score >> NOISE)))));
    }

    void output_all(int16_t next_out) {
      // raw output on 0 should be wired to input on 0
      // output on 1 will be read/corrected ac/corrected cj depending on switch
      AudioOut(0, next_out);
      int16_t in = AudioIn(0);
      if (sw != Down) in = correct(sw == Middle, in);
      AudioOut(1, in);
    }

    void ProcessSample() override {
      update_switch();
      int16_t next_out = wtable[count % wtable_size];
      if (DEBUG) {
	output_all(next_out);
      } else {
	compare_and_score(next_out);
      }
      prev_out = next_out;
      count++;
    }

  public:
    DNL() {
      for (uint i = 0; i < wtable_size; i++)
	// want sawtooth (so no sudden changes) that covers all values
	wtable[i] = static_cast<int16_t>(i < wtable_size / 2 ? i * 2 - 0x800 : 0x1801 - i * 2);
    }
  };


  int main() {
    DNL dnl;
    dnl.Run();
  };
